Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | heat resistance cable,fiber optical cable |
||
G.652D 2 Core 24 Core Fiber Optic Network Cable GYFTY53 with PE sheath in Black
Quick Detail:
Description:

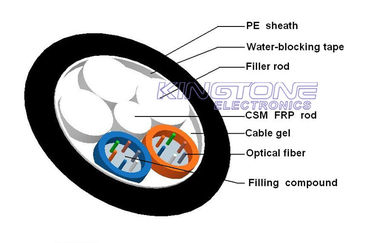

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.
Applications:
|
KT3012 GYFTY53 Outdoor Fiber Optic Cable G.652D or G.657A 2~24 Core PE Jacket |
||||||
| Description&Standards : | ||||||
|
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of waterblocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath. |
||||||
| GYFTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1. | ||||||
| Characteristics: | ||||||
| Good mechanical and temperature performance; | ||||||
| High strength looes tube that is hydrolysis resistant; | ||||||
| Special tube filling compound ensure a critical protection fiber; | ||||||
| Crush resistance and flexibility; | ||||||
| The following measures are taken to ensure the cable watertight: | ||||||
| (1)Single Fiber Reinforced Plastic as the central strength member; | ||||||
| (2)Loose tube filling compound; | ||||||
| (3)100% cable core filling; | ||||||
| (4)PSP enhancing moisture-proof; | ||||||
| (5)Water-blocking material. | ||||||
| Technical Parameters: | ||||||
| Cable Type |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush
Resistance
Term |
Bending
Radius
Dynamic |
|
| GYFTY53-2~24 | 13.5 | 200 | 1000/3000 | 1000/3000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
|
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
| @1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
||||
| @1550nm |
≤0.22 dB/km |
≤0.23 dB/km |
||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
| Order Informations: | ||||||
| Marking |
KINGTONE KT3012 GYFTY53 XXX M/FT (or Per customer's request) |
|||||
| Package |
1000M/2000M/3000M, Drum/Pallet (or Per customer's request) |
|||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
