PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket

China PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket supplier
PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket supplier PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket supplier PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket supplier

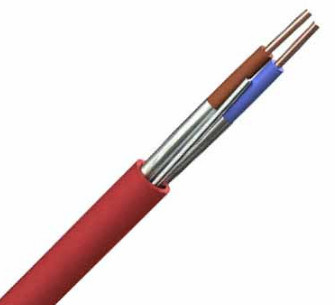

Large Image :  PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: PH30 Fire Resistant Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500M, Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 500KM / Month
Contact Now
Detailed Product Description
Conductor: Stranded Bare Copper Insulation: Silicone Rubber
Shield: PET / AL-Foil Jacket: FR-LSZH
Color: Red Package: 500M, Wooden Spool, Carton
High Light:

heat resistance cable

,

fiber optic ethernet cable





PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket





Quick Detail:



  • SR 114H Standard Cable
  • PH30 Fire Resistant Cable
  • PH60 Fire Resistant Cable
  • 2 Cores / 4 Cores
  • 1.00mm2 / 1.50mm2 / 2.50mm2 / 4.00mm2
  • Stranded Bare Copper Conductor
  • Silicone Rubber Insulation
  • FR-LSZH Jacket
  • 500M/Wooden Spool, 1Spool/Carton
  • 30 Minutes Under Fire of 840 Degrees without Short-Circuit.
  • 60 Minutes Under Fire of 840 Degrees without Short-Circuit.





Description:



KT1412 SR 114H Standard PH30 PH60 Fire Resistant Cable with Silicone Rubber LSZH Jacket

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999



ZION using best raw material and best worker to produce KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH to meet high performance in practical application. KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH is packed in 500M/Spool, 1Spool/Carton, then will be layed on pallet to protect the spool and easier carry. Because of good managing methods,

ZION’S price of KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.



KT1412 SR 114H Standard Cable PH30 PH60 Fire Resistant Cable Silicone Rubber FR-LSZH Jacket
APPLICATION:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areasas well for fixed open air installation.
This cable type with electrostatic screening (St) protects
the transmission circuits against externelectrical interferences.
Standards:
All these cables comply to:
BS 5839-1:2002
Code of practice for fire system design, installation, commissioning and maintenance.
BS 7629-1:2008
Low emission of smoke and corrosive gases
BS EN 50200 PH30 PH 60
Temperature: 830 °C Flame and shock for 30/60 minutes.

ELECTRICAL DATA (AT20OC)
Minimum
Bend Radius
Min.
Insulation
resistance
Max.Working
Temperature
Test voltage
(rms value)
Max.
Operating
voltage
peak value
  MΩ/km  ℃ V V
8×Diameter 300 -40℃~+90℃ 1000 300/500

TYPES AND MECHANICAL DATA
Types
sqmm (mm2)
Conductor Insulation Shielded1/
Drain Wire /
Shielded2
Level of
twisting
Jacket
Matterial
OD of
Jacket (mm)
2×1.0 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 6.50±0.20
4×1.0 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 7.50±0.20
2×1.5 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 7.00±0.20
4×1.5 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 8.10±0.20
2×2.5 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 8.00±0.20
4×2.5 BC Class 1,5 Rubber PET/AL-Foil  TC FR-LSZH 9.50±0.20
2×4.0 BC Class 5 Rubber PET/AL-Foil  TC FR-LSZH 9.30±0.20
4×4.0 BC Class 5 Rubber PET/AL-Foil  TC FR-LSZH 11.20±0.20

  *Notes Class Types: Class1: Solid / Class 5: Flexible
  FR-LSZH: LSZH thermoplastic material Type LTS3 to BS 7656-6.1
  Silicone Rubber: High performance silicone rubber EI2 to BS EN 50363-1
TECHNICAL DATA
Types
sqmm (mm2)
Max.Resistance
of Cond.at 20℃
Current Carrying
Capacity(Amperes)
Nominal
Capacitance
(pF/m)
  Class 1,2 Class 5 Clipped Direct In Conduit Core Screen
1.00  18.10 Ω/km 19.50 Ω/km 19 17 100 170
1.50  12.10 Ω/km 13.30 Ω/km 24 22 110 190
2.50    7.41 Ω/km   7.98 Ω/km 33 30 130 220
4.00    4.61 Ω/km   4.95 Ω/km 45 40 160 270

Order Informations:
  Marking

ZION KT1412 SR 114H Standard Cable PH30 PH60

N*NNmm2  XXX M  MMDDYYYY

  Package 500M/Wooden Spool, 1Spool/Carton
